Base Isolation Seismic Design in Bundaberg

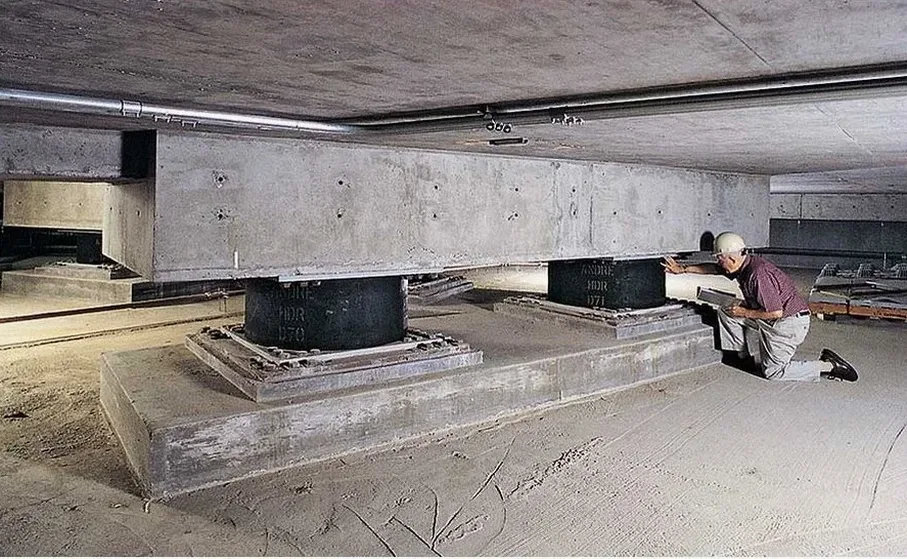

A common oversight we see among builders in Bundaberg is assuming a standard foundation can handle seismic loads without accounting for the local soil profile. The region’s deep alluvial deposits and variable groundwater levels mean a rigid base can transmit ground motion directly into the structure, causing disproportionate damage. That is where base isolation seismic design becomes critical. We decouple the building from the ground using elastomeric or sliding bearings, tuned to the site-specific response spectrum. Before specifying the isolators, we always perform a detailed subsurface investigation — often combining borehole data with microtremor HVSR to capture the natural period of the soil column. This ensures the isolation system works with the ground, not against it.

Soft alluvial profiles in Bundaberg can amplify seismic accelerations by up to 40% — base isolation shifts the building period away from that resonance.

Methodology applied in Bundaberg

Bundaberg sits on a thick sequence of Quaternary alluvium and coastal sands, with the water table typically between 2 and 5 metres below ground. That soft profile amplifies long-period waves, so a fixed-base building could see accelerations 30–40% higher than at a rock site. Base isolation seismic design counters this by shifting the building’s fundamental period away from the dominant soil period. We follow AS/NZS 1170.4 for the design response spectrum and AS 1726 for site classification. A key part of our workflow is running non-linear time-history analyses using accelerograms compatible with the Bundaberg region. For projects on variable ground, we often complement the design with deep soil mixing beneath the isolation plane to improve uniformity of bearing stiffness. The result is a structure that moves as a rigid block during an earthquake, with damage concentrated in the easily replaceable isolators.

Base Isolation Seismic Design in Bundaberg – Tailored Engineering for Seismic Resilience

Parameter	Typical value
Target isolation period	2.0 – 3.5 seconds
Maximum isolator displacement (MCE)	300 – 500 mm
Design basis earthquake return period	500 years (AS/NZS 1170.4)
Site class (AS 1726)	Class Ce – Deep soft clay/sand profiles
Allowable base shear reduction	50 – 70% relative to fixed-base

Typical technical challenges in Bundaberg

Compare two Bundaberg suburbs: “West Bundaberg” sits on firm sandy clays with a shear wave velocity (Vs30) around 250 m/s, while “Kensington” near the Burnett River has very soft estuarine silts with Vs30 below 180 m/s. A fixed-base design on the Kensington site would experience resonance at roughly 0.8 seconds — coinciding with the natural period of a 4–6 storey building. Without base isolation seismic design, the upper floors could see inter-storey drifts exceeding 2.5%, leading to non-structural damage and potential collapse. We have seen this pattern repeatedly in post-earthquake reconnaissance reports from similar soil profiles in Christchurch and Niigata.

This service complements our laboratory testing work for a complete project analysis.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.xyz

Applicable standards: AS/NZS 1170.4:2007 – Structural Design Actions, Part 4: Earthquake Actions, AS 1726:2017 – Geotechnical Site Investigations, AS 4678:2002 – Earth-Retaining Structures, FEMA P-750 – NEHRP Recommended Seismic Provisions

Our services

We offer three integrated services for base isolation seismic design in Bundaberg, each tailored to the site conditions and project scale.

Site-Specific Response Spectrum Analysis

We perform shear wave velocity profiling (MASW or crosshole) to determine the Vs30 and site class per AS 1726. Using this data, we generate a site-specific response spectrum that accounts for the deep alluvial layers beneath Bundaberg, rather than relying on generic hazard maps.

Isolator Selection & Detailing

Based on the target period and displacement demands, we specify high-damping rubber bearings or lead-rubber bearings from certified manufacturers. We verify the isolator performance through prototype testing per ASCE 7-16 and provide shop drawings for the connection details between isolator and substructure.

Non-Linear Time-History Verification

For critical facilities such as hospitals or emergency centres, we run 3D non-linear time-history analyses using at least three spectrum-compatible ground motions. We check isolator stability under maximum considered earthquake (MCE) displacements and verify that the superstructure remains elastic.

Frequently asked questions

What is the typical cost range for base isolation seismic design in Bundaberg?

For a typical mid-rise building (3–6 storeys), the total engineering cost including site investigation, spectrum analysis, isolator specification and peer review falls between AU$6,360 and AU$14,100 depending on the number of isolators and complexity of the structure. This figure excludes isolator hardware and installation.

How does Bundaberg's soil profile affect the design of the isolation system?

The deep alluvial and estuarine deposits create a soft site class (Ce per AS 1726) with a natural period around 0.8–1.2 seconds. A base isolation system must shift the building period to at least 2.5 seconds to avoid resonance. We use site-specific response spectra to size the isolators accordingly.

Can base isolation be retrofitted into an existing building in Bundaberg?

Yes, but it requires careful planning. We typically install isolators at the base of existing columns by jacking the structure, cutting the columns, and inserting the bearings. The existing foundation must be strengthened to distribute the concentrated loads. We have completed retrofits for heritage and commercial structures in similar soft-soil zones.

What certifications do your isolator suppliers hold?

All isolators we specify are manufactured under ISO 9001 quality systems and tested according to ASCE 7-16 and EN 15129. We require prototype testing reports for each production batch, including stiffness, damping and stability verification under design and MCE displacements.
