CBR Study for Road Design in Bundaberg

Bundaberg sits on a mix of alluvial and volcanic soils. Many local roads show early cracking because the subgrade was not properly tested. A CBR study for road design measures the bearing capacity of the soil. This data tells us how much load the ground can support before failure. Without it, pavement thickness is a guess. We have seen too many projects fail because the CBR was assumed instead of tested. That is why we insist on a real laboratory test. Complementing the CBR with a subgrade assessment gives a complete picture of the soil's behavior under traffic loads.

One CBR point per kilometer is not enough. Bundaberg soils vary within 50 meters.

Methodology applied in Bundaberg

A common mistake in Bundaberg is relying on a single CBR value for the entire road segment. The soil changes across the block. We run the test on undisturbed samples at field moisture content. The lab soaks the sample for four days to simulate worst-case wet conditions. Then we apply a plunger at 1.27 mm/min and record the force. We report values at 2.54 mm and 5.08 mm penetration. The lower value is the design CBR. This method follows AS 1289.6.1.1. We also recommend a Proctor compaction test to relate CBR to density. That link is critical for quality control during construction.

CBR Study for Road Design in Bundaberg

Parameter	Typical value
Test standard	AS 1289.6.1.1
Sample preparation	Remoulded at OMC, soaked 96 hours
Penetration rate	1.27 mm/min
Reporting penetration	2.54 mm and 5.08 mm
Swelling measured	Yes, during soaking period
Typical range Bundaberg	CBR 3-15 depending on soil type

Typical technical challenges in Bundaberg

Bundaberg has an average annual rainfall of 1100 mm. Most rain falls between December and March. Heavy storms saturate the subgrade quickly. If the design CBR is based on dry samples, the pavement will fail within months. We have seen road shoulders collapse after a single wet season. The swelling of clay soils in the Burnett River floodplain can lift the pavement. A proper CBR study for road design accounts for soaked conditions. That is the only way to predict field performance.

This service complements our laboratory testing work for a complete project analysis.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.xyz

Applicable standards: AS 1289.6.1.1:2014 (CBR test), AS 1289.6.1.2:2014 (CBR on disturbed samples), AS 1726:2017 (Geotechnical site investigations)

Our services

We offer two standard CBR services for Bundaberg road projects.

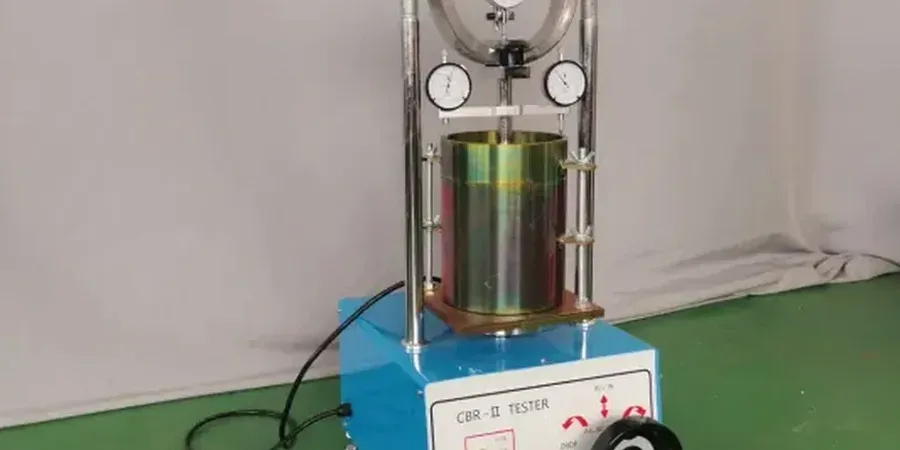

Standard Laboratory CBR

Remoulded sample at optimum moisture content. Four-day soak. Load vs penetration curve. Includes swelling measurement and report with design CBR value.

Field CBR (in-situ)

Test performed directly on the subgrade using a portable loading device. No sample disturbance. Ideal for quality control during earthworks and pavement layers.

Frequently asked questions

How much does a CBR study for road design cost in Bundaberg?

A standard laboratory CBR test costs between AU$230 and AU$500 per sample, depending on the number of samples and the required soak time. Field CBR tests are typically AU$250 to AU$450 per location. Volume discounts apply for large road projects.

What is the difference between soaked and unsoaked CBR?

Soaked CBR simulates the worst-case moisture condition after heavy rain. The sample is submerged for 96 hours before testing. Unsoaked CBR tests the soil at its natural moisture content. For Bundaberg roads, soaked CBR is always recommended because of the high rainfall.

How many CBR tests do I need for a road in Bundaberg?

At least one test per 500 meters of road length, plus one test for each distinct soil layer. If the soil changes frequently, increase the density. A geotechnical engineer can define the exact number based on the site variability.
