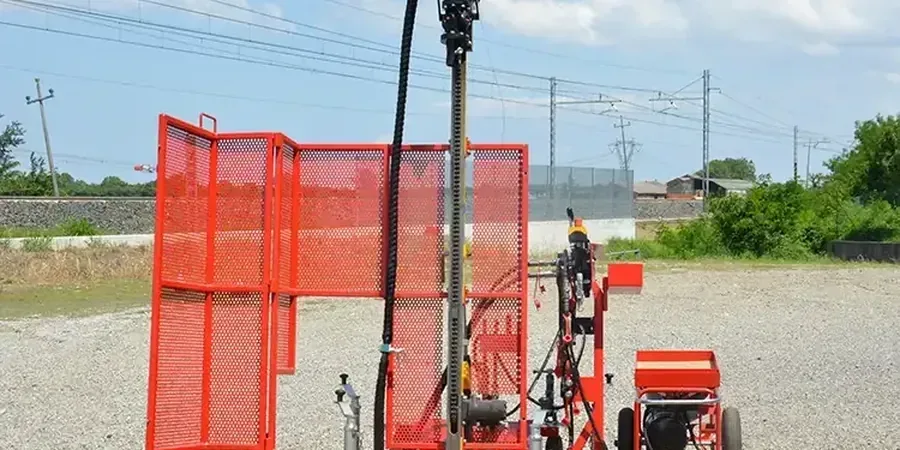

We run SPT (Standard Penetration Test) in Bundaberg using a 63.5 kg hammer dropped from a standard height of 760 mm. The automatic trip device ensures consistent energy transfer, which is critical in the variably saturated sands and stiff clays common across the city's coastal plain. We record blow counts per 300 mm interval and collect split-spoon samples for classification. Before mobilizing, we cross-check the target depth with local borehole records to avoid the shallow water table that appears near the Burnett River. The entire setup fits on a light rig, so we access tight residential lots without issues.
A rushed SPT in Bundaberg cemented sands can overestimate N-values by 40%, leading to undersized foundations.
Methodology applied in Bundaberg
Typical technical challenges in Bundaberg
The Bundaberg region sits on Quaternary alluvium and coastal sands, with the water table at 1.5 to 3 m depth in many suburbs. During wet season, loose sands can lose effective stress rapidly. An SPT performed without correcting for rod length and overburden stress may return misleadingly low N-values near the surface. That is dangerous because engineers rely on those numbers to design pad footings and driven piles. We flag this in every report and apply the corrections from AS 1726 appendix D before delivering final N60 values. If the site has thick soft layers, we also recommend ensayo triaxial to verify undrained shear strength.
This service complements our laboratory testing work for a complete project analysis.
Our services
We offer two complementary SPT services tailored to Bundaberg project types.
SPT for residential and light commercial foundations
Boreholes to 15 m depth with SPT every 1.5 m. Includes sample description, moisture content, and N60 profile. Ideal for slab-on-grade and strip footing design.
SPT with liquefaction assessment
Extended SPT program with fines content and water content testing. We apply the Youd-Idriss 2001 method to calculate cyclic resistance ratio. Suitable for schools, hospitals, and critical infrastructure in Bundaberg.
Frequently asked questions
How much does an SPT cost in Bundaberg?
A standard SPT program in Bundaberg ranges between AU$810 and AU$1,010 per borehole, including sample collection and field logs. The final price depends on depth, number of tests, and site access conditions.
What is the difference between N-value and N60?
N-value is the raw blow count from the field. N60 corrects for hammer energy efficiency, rod length, borehole diameter, and sampler type. Engineers in Bundaberg use N60 for capacity calculations because it removes systematic biases from different rig types.
Can SPT detect liquefaction in Bundaberg soils?
Yes, SPT is the primary method for liquefaction assessment. We combine corrected N60 values with fines content from the split-spoon sample and apply the NCEER 2001 curves. Sites near the Burnett River with clean sands and high water table are the most susceptible.
How soon can you mobilise an SPT rig in Bundaberg?
We typically mobilise within 3 to 5 working days after receiving the site plan and access instructions. For urgent projects, we can arrange a rig within 48 hours, subject to crew availability and weather conditions.
