The oedometer consolidation test is the standard method for determining how compressible soils will behave under load, and in Bundaberg this is especially relevant given the city’s extensive floodplain deposits and alluvial clay layers. Our laboratory follows AS 1289.6.6.1 for step-loading procedures, reporting pre-consolidation pressure (σ'p), compression index Cc, and coefficient of consolidation cv. Before interpreting results, we often cross-reference with a laboratory permeability test to distinguish primary consolidation from secondary compression, and we check soil classification data from Atterberg limits to estimate plasticity effects on settlement rates. This combination gives project engineers a complete picture of how a site will settle over time.
For soft alluvial clays typical of Bundaberg, the oedometer test gives the settlement rate data that SPT alone cannot provide.
Methodology applied in Bundaberg
- Pre-consolidation stress (σ'p) – to identify overconsolidation ratio
- Compression index Cc – used in settlement calculations
- Coefficient of consolidation cv – for time-rate predictions
Typical technical challenges in Bundaberg
A warehouse project near the Burnett River showed how ignoring consolidation behaviour can cause problems. The design assumed granular fill would carry loads within weeks, but the underlying clay layer had a cv of only 2 m²/year. Settlement projections from the oedometer test predicted 120 mm of primary consolidation over 18 months. Without that data, the slab would have cracked as differential settlement reached 40 mm within the first year. The oedometer test in Bundaberg provides the time-settlement curve that prevents such failures, especially where soft estuarine clays are present.
This service complements our laboratory testing work for a complete project analysis.
Our services
We offer two oedometer testing options tailored to the project stage and soil type found in Bundaberg.

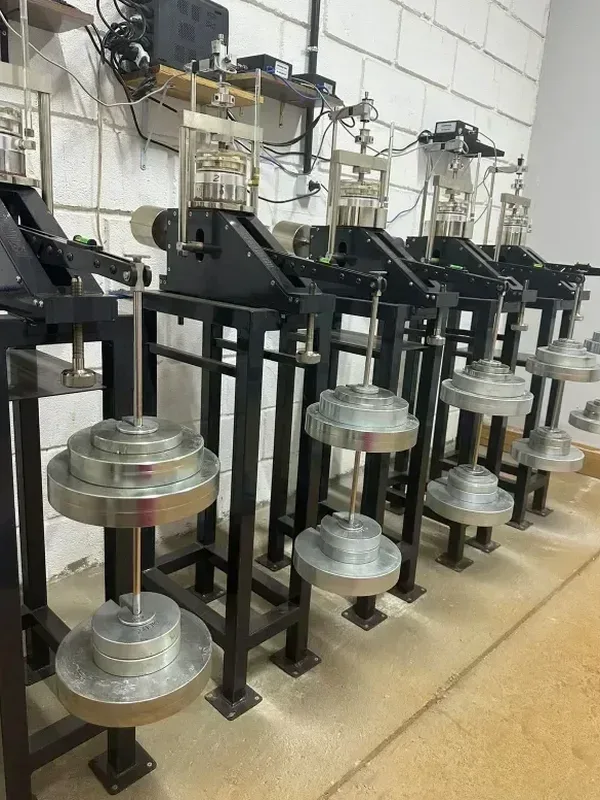

Standard Incremental Oedometer Test
Eight load increments from 12.5 kPa to 3200 kPa with unloading cycles. Delivers σ'p, Cc, Cs, and cv. Ideal for multi-storey foundation design and embankment settlement forecasts. Run in our NATA-accredited lab with full chain-of-custody.
Constant Rate of Strain (CRS) Oedometer Test
Faster alternative for preliminary assessments. A single continuous loading at 0.5–1 %/min strain rate. Provides σ'p and cv in 2–3 days. Suitable for early-stage feasibility studies in Bundaberg's alluvial zones.
Frequently asked questions
What is the difference between the oedometer test and the SPT for settlement prediction?
The SPT measures resistance to penetration and gives an indirect estimate of soil stiffness, but it cannot determine consolidation rates. The oedometer test directly measures how much a soil sample compresses under controlled loads and how fast that compression occurs. For Bundaberg's soft clays, the oedometer provides the cv and Cc values needed for reliable time-settlement curves, which SPT alone cannot supply.
How much does an oedometer consolidation test cost in Bundaberg?
A standard incremental oedometer test typically ranges between AU$310 and AU$700 per sample, depending on the number of load increments and whether unloading-reloading cycles are included. CRS tests are usually at the lower end of that range. Volume discounts apply when testing multiple samples from the same site.
How long does the test take and when do I get the results?
A full incremental oedometer test with eight loads and one unloading cycle takes approximately 10 to 14 days from sample receipt to final report. CRS tests can be completed in 2 to 3 days. We provide preliminary cv and σ'p values by day 5 for incremental tests if needed for design decisions.
