We recently designed a DSM solution for a bulk storage facility near the Burnett River. The client needed Improvement for a 15-meter diameter tank on deep soft clay. That clay is typical of Bundaberg's floodplain deposits. We ran laboratory mix designs at 28-day cure to target 2.5 MPa UCS. Before specifying column spacing, we cross-checked the profile using presurometro data to capture lateral stiffness. The whole process took three weeks from sampling to design report.
Deep Soil Mixing design in Bundaberg demands blend trials calibrated to the actual estuarine clay, not generic mix recipes.
Methodology applied in Bundaberg

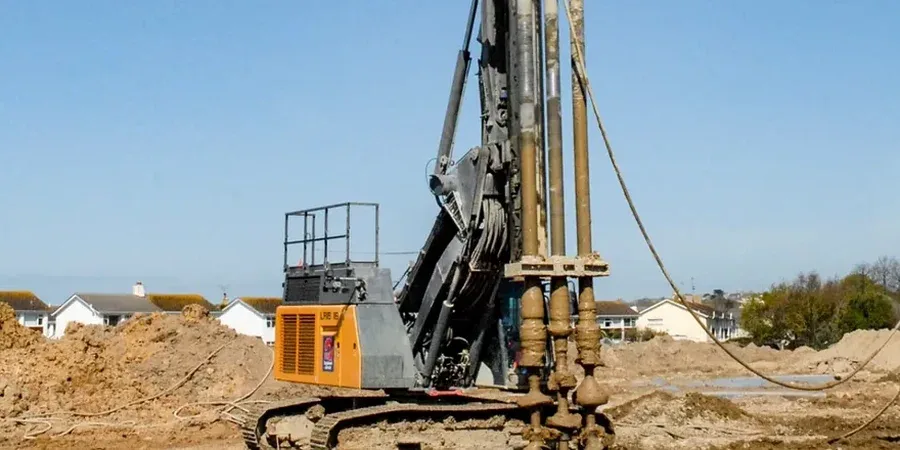

Working video
Typical technical challenges in Bundaberg
The biggest risk we see locally is incomplete mixing in the upper 2 meters. That zone often contains root debris and silt lenses. If the auger rotation speed is too high, the binder slurry channels through voids instead of blending uniformly. We enforce strict adherence to AS 4678 parameters for auger penetration rate and slurry injection pressure. A field trial panel with core recovery is mandatory before production starts. No exceptions.
This service complements our laboratory testing work for a complete project analysis.
Our services
Our DSM design service covers two main delivery modes depending on project scale and soil variability.
Full Design Package
Includes field sampling, binder selection, mix design with 28-day UCS testing, column layout optimization, and settlement analysis. Suitable for tanks, embankments, and building foundations on soft ground in Bundaberg.
Verification & Review
Independent peer review of existing DSM designs, including check of column spacing, strength assumptions, and compliance with AS 1726. Ideal for councils or insurers requiring a second opinion.
Frequently asked questions
What is the typical strength gain for DSM columns in Bundaberg clay?
We commonly see UCS values between 1.5 and 3.0 MPa at 28 days when using a Portland cement blend at 250 kg/m³. The local estuarine clay has high organic content, which can delay strength gain. We always run trial mixes with site-specific soil to confirm the target.
How much does Deep Soil Mixing design cost in Bundaberg?
A full design package including sampling, mix trials, and reporting typically ranges from AU$2,200 to AU$9,440. The variation depends on the number of strata, column depth, and testing frequency. We provide a fixed quote after reviewing the geotechnical report.
Can DSM columns be used for earthquake resistance in Bundaberg?
Yes, DSM columns improve the stiffness of soft layers and reduce liquefaction potential. Bundaberg is in a low-to-moderate seismic zone per AS 1170.4, but soft alluvial deposits can amplify shaking. We design columns to act as shear walls or ground densification elements depending on the hazard level.
What is the minimum column overlap for a DSM wall in Bundaberg?
For secant column walls we recommend a minimum overlap of 150 mm at the design diameter. In practice, we use 200 mm overlap to account for verticality tolerances in Bundaberg's variable alluvium. This ensures a continuous barrier for groundwater cutoff or excavation support.
